Best Shower Diverter Valve for Tankless: Split Flow & Multi-Fixture Setups

Affiliate Disclosure: TanklessGeek participates in the Amazon Services LLC Associates Program. We earn commissions from qualifying purchases through our Amazon links at no extra cost to you. We recommend products based on specifications, performance, and value, not commission rates.

Why Tankless Systems Demand a Better Diverter

A tank water heater holds 40-80 gallons at stable temperature. When you open a second shower head, the supply pressure and flow barely flinch - there's a large buffer absorbing the draw change. A tankless heater responds in real time. The unit's flow sensor detects the increased demand, the gas valve opens further, and output climbs - but there's a 2-3 second lag during which temperature can momentarily swing.

This makes two things critical for tankless multi-fixture setups that most guides skip over:

1. Total flow rate must stay within the unit's rated capacity. Opening two 2.5 GPM shower heads simultaneously pulls 5.0 GPM. If your unit's maximum output at your groundwater temperature is 4.5 GPM, it will struggle to maintain temperature and may flash cold water between cycles.
2. Thermostatic valves provide a buffer against temperature swings. When someone flushes a toilet mid-shower, cold water suddenly enters the system - the tankless unit sees a temporary pressure shift and may briefly underheat or overheat. A thermostatic diverter maintains a constant outlet temperature regardless of these pressure events, which standard pressure-balance valves do not.

The right diverter for a tankless system is one that handles these dynamics. The wrong one creates a frustrating shower experience despite having a perfectly good tankless unit upstream.

How to Choose the Right Diverter Type

External Shower Arm Diverters (No Wall Work)

External arm diverters thread onto the existing shower arm between the wall and the shower head. They add a second outlet port - typically a 1/2-inch NPT male thread where a handheld hose connects. Installation takes 10-15 minutes with no plumbing tools beyond Teflon tape.

Best when: You want to add a handheld wand to an existing single-head setup, or you're renting and can't open walls. These diverters work perfectly well with tankless systems - they add no meaningful restriction to flow.

Limitation: The shower arm bears the full weight and torque of two connections. Inexpensive zinc-alloy models can crack at the arm fitting within a year under the stress of a hose hanging from the second port. Specify solid brass - not zinc alloy or ABS - for any external diverter on a tankless setup where water temperature runs high.

In-Wall Pressure-Balance Valve Bodies (Rough-In)

An in-wall pressure-balance valve is the standard code-compliant choice for new construction or bathroom remodels. The valve body sits inside the wall, connected to hot and cold supply lines. A trim kit - handle, plate, and diverter - mounts over the rough-in opening. Pressure-balance valves prevent scalding by maintaining the hot-to-cold ratio when supply pressure shifts, though they do not control absolute temperature.

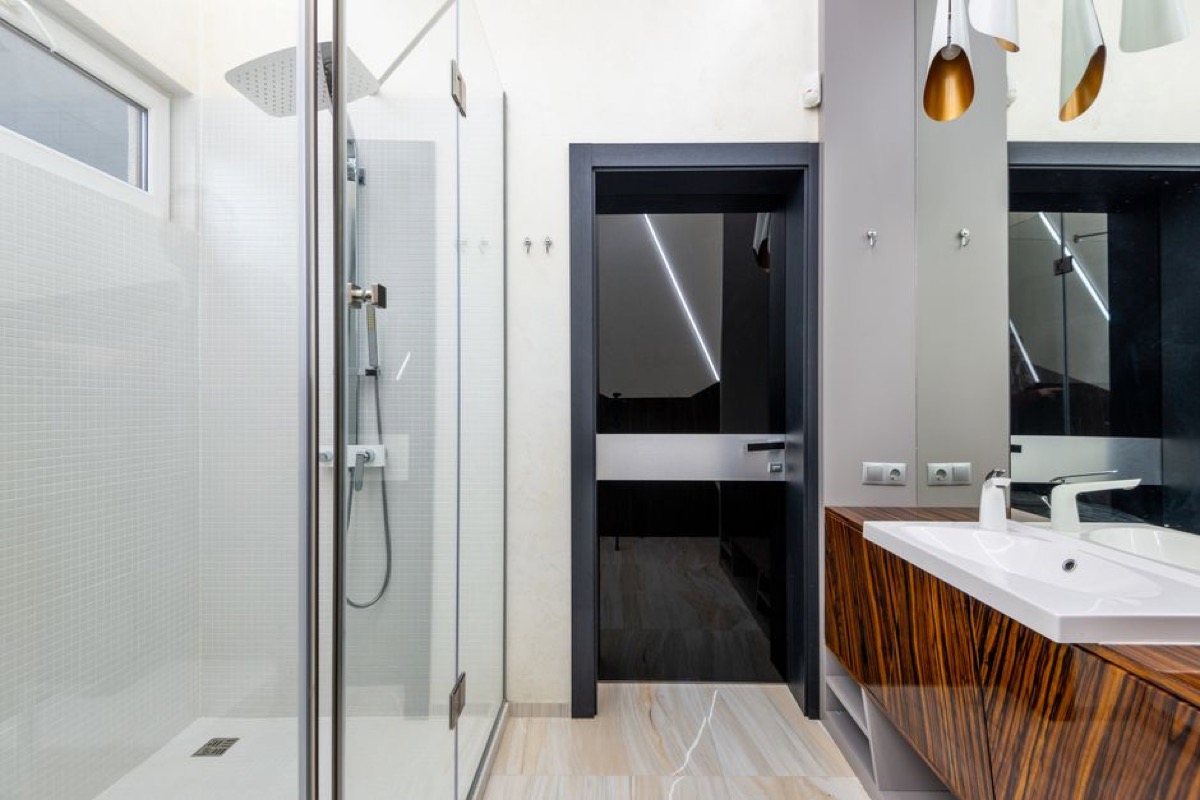

Best when: You're already opening the wall for a remodel, or you want a clean built-in look with a full shower system (body jets, rain head, handheld). The Delta MultiChoice platform is the industry standard here - one rough-in body accepts any Delta trim from a basic single-function handle to a full thermostatic kit, which means you can upgrade trim later without touching the plumbing.

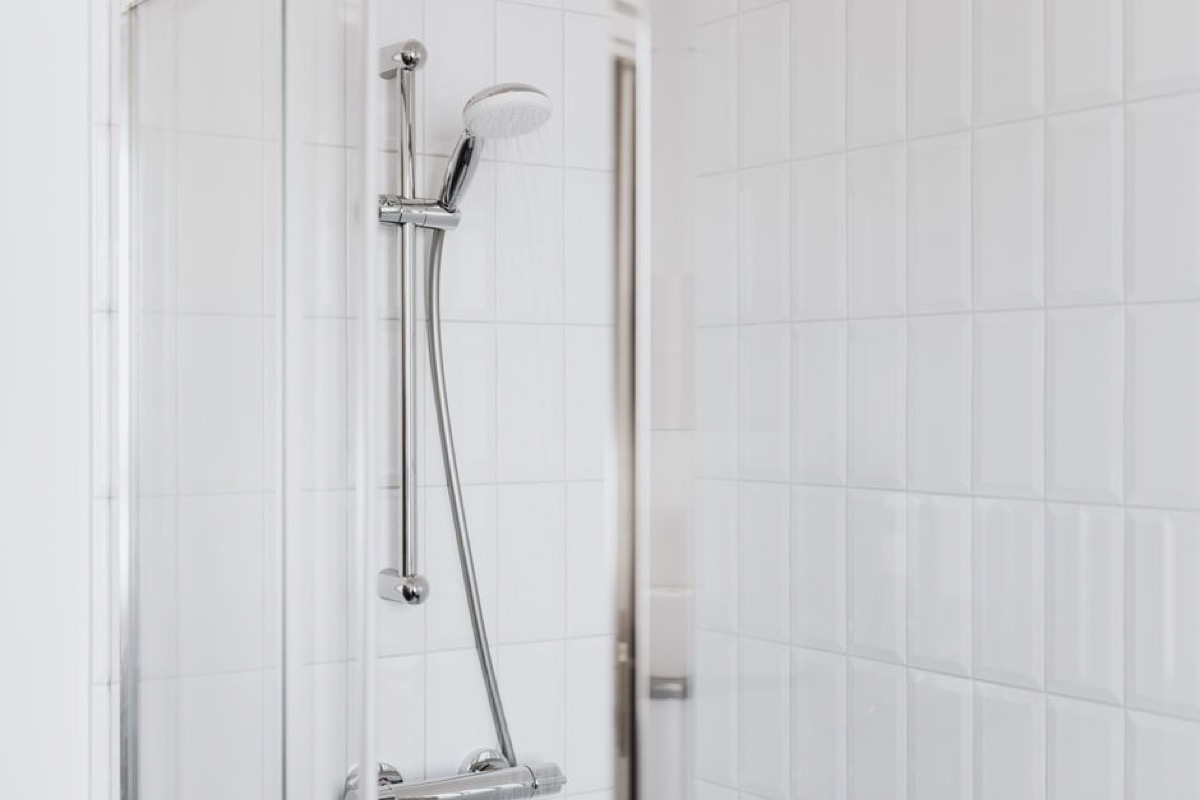

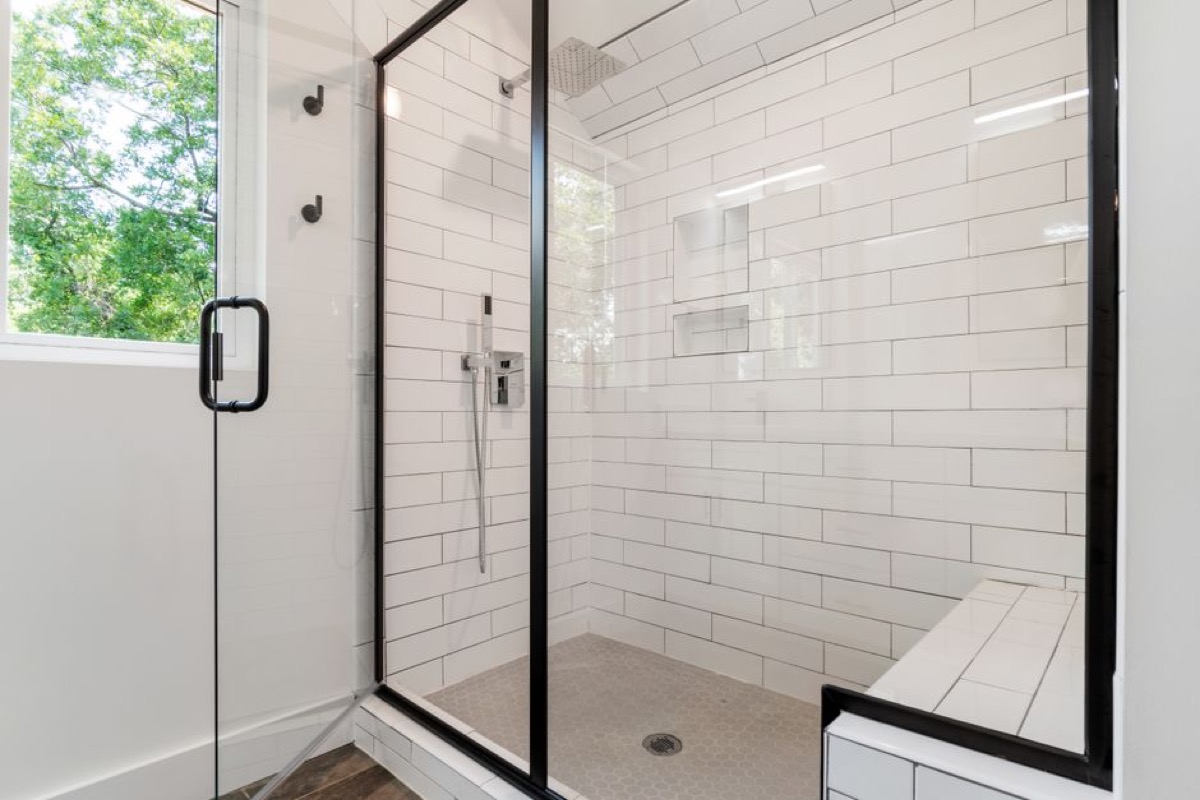

In-Wall Thermostatic Valves (Premium)

Thermostatic valves add a wax or ceramic cartridge that senses output temperature and compensates for pressure fluctuations by adjusting the mix ratio in real time - faster and more precisely than a pressure-balance valve. The result is a genuinely constant outlet temperature, not just a ratio-maintained temperature. Most thermostatic trim kits also include independent volume controls per outlet, so you can run the rain head at full flow while the handheld runs at 50%, or shut off one outlet without affecting the other.

Best when: You have a high-output gas tankless unit, multiple outlets running simultaneously, or household members who are sensitive to temperature swings. Thermostatic valves pair especially well with tankless heaters because they absorb the 2-3 second lag during demand changes that pressure-balance valves pass through to the user.

Product Reviews

1. HammerHead Showers 3-Way Arm Diverter - Best External Diverter Overall

Check Price on Amazon

HammerHead Showers builds the external diverter market's best-regarded all-metal option. The body is solid brass with a chrome finish - not zinc alloy - which means it will not crack at the arm fitting or corrode at the threads over time. The 1/2-inch NPT connections are universal, compatible with every standard shower arm and every standard handheld hose connection. Three positions: outlet 1 only, outlet 2 only, or both simultaneously (flow is split, pressure drops at each head).

Flow rate at each outlet when both are open is approximately 1.25 GPM per port assuming 2.5 GPM supply - adequate for a handheld wand, less satisfying for a second full rain head. For rain-head-plus-handheld setups, this is the correct tool. For dual full rain heads, an in-wall valve with a higher-output tankless unit is the better path.

Specs: Solid brass, 1/2-inch NPT male/female, 3-way, 2.5 GPM max per outlet single-use, limited lifetime warranty. Includes Teflon tape and installation instructions.

Best for: Adding a handheld wand to an existing tankless shower setup without any wall work.

2. Sneatup Solid Brass 3-Way G1/2 Diverter - Best Budget Pick

Check Price on Amazon

At under $10, the Sneatup brass diverter is the correct answer when you need a second outlet in a tight space and don't want to spend $30+ on a name-brand arm diverter. The G1/2 female inlet and two G1/2 male outlets match standard metric thread sizes used on most imported shower fixtures and handheld hose connections. Solid brass construction - verified by weight at 6 oz, which is consistent with brass and inconsistent with zinc alloy.

The limitation is the G1/2 metric thread, which is not the same as 1/2-inch NPT. Most North American shower arms use NPT threads. If your shower arm is NPT (American standard) and your handheld hose is also NPT, you need a thread adapter or the HammerHead model above. If you're working with metric-threaded fixtures common on imported European-style shower systems, the Sneatup is a near-perfect compact solution.

Specs: Solid brass, G1/2 female inlet, two G1/2 male outlets, 3-way, chrome finish, 3-month warranty. Rubber washers included.

Best for: Metric-thread fixture setups, tight shower arm clearance, budget installations.

3. Delta Faucet R10000-UNBX MultiChoice Valve Body - Best In-Wall Rough-In

Check Price on Amazon

The Delta MultiChoice universal valve body is the industry-standard rough-in for bathroom remodels. At $42, you install one valve body in the wall and then choose any Delta trim kit - pressure-balance single-function, pressure-balance dual-function, or full thermostatic - without ever opening the wall again. This future-proofing makes it the correct call for any new construction or wall-open remodel even if you only want a basic setup today.

The valve body accepts 1/2-inch copper, NPT, PEX, and CPVC connections on both hot and cold inlets, which means it works regardless of what your existing tankless system's supply lines are made of. The heat-resistant pressure test cap lets you pressure-test the rough-in before tiling, which prevents the expensive discovery of leaks after the wall is closed.

Note: This is a valve body only. The cartridge ships with the Delta trim kit you choose separately. For a tankless multi-fixture setup where you want to run two outlets, pair with a Delta 17T series thermostatic trim kit (sold separately) to get independent volume control and temperature stability.

Specs: Brass, 1/2-inch universal inlets/outlets (NPT, copper, PEX, CPVC), 4 ports, lifetime limited warranty. Pressure test cap and mounting bracket included.

Best for: Remodels, new construction, anyone who wants to upgrade trim later without touching plumbing.

4. HOMEDEC 3-Way Thermostatic Shower Valve - Best Anti-Scald Thermostatic

Check Price on Amazon

The HOMEDEC 3-way thermostatic valve is the best-value concealed thermostatic option for tankless multi-fixture setups. It locks output temperature at 38 degrees C (100 degrees F) - you set it once and the valve holds it there regardless of supply pressure fluctuations. Three independently controlled knobs manage flow to three separate outlets, so you can run a rain head, a body spray, and a handheld wand from a single valve body with complete independent volume control per outlet.

The 3/4-inch hot and cold inlets are a meaningful spec advantage. Standard in-wall valves use 1/2-inch supply connections, which limits flow to roughly 4-5 GPM at typical residential pressure. The HOMEDEC's 3/4-inch inlets reduce velocity losses and support higher simultaneous output - relevant when you're pulling 6+ GPM through three active outlets from a high-output gas tankless unit.

Construction is solid brass with cUPC certification - the certification that confirms the valve meets NSF/ANSI 61 and 372 standards for potable water contact. This is not universal among imported thermostatic valves; it matters for both code compliance and long-term water quality. The 5-year warranty covers parts and defects.

Specs: Brass, 3/4-inch inlet, three 1/2-inch outlets, thermostatic lock at 100F, cUPC certified, brushed nickel finish, 5-year warranty.

Best for: Three-outlet setups (rain head + body spray + handheld), households with children or elderly users, high-output gas tankless systems.

5. Enga Digital Thermostatic 3-Way Valve - Best Precision Temperature Control

Check Price on Amazon

The Enga digital thermostatic valve adds a visible temperature display to the concealed valve concept. You set the exact temperature on the digital readout - not "somewhere around hot" but a specific degree value - and the valve maintains it. Three push-button outlets with independent volume control, 3.83 GPM per single outlet at 80 PSI, and a combined 4.45 GPM when all three outlets run simultaneously.

That 4.45 GPM simultaneous figure is an honest spec: most residential pressure-balance valves claim higher numbers but see significant restriction in practice. The Enga's 1/2-inch NPT female threads on all ports match standard North American plumbing directly. The push-button outlet controls are faster to operate than rotary knobs - relevant in a multi-outlet setup where you're constantly toggling between rain head and handheld.

At $231 (down from $296 list price), this is the most expensive option in this guide, but it's priced below comparable thermostatic digital valves from Kohler and Grohe. For a luxury spa shower paired with a high-output tankless unit, the digital display and precise temperature confirmation justify the premium over the HOMEDEC at $210.

Specs: Brass with brushed nickel finish, digital temperature display, three 1/2-inch NPT female outlets, 3.83 GPM single outlet at 80 PSI, push-button controls, independent volume per outlet.

Best for: Luxury spa setups, exact temperature repeatability, users who want a specific degree value confirmed on the valve.

Flow Rate Planning: Matching Your Diverter to Your Tankless Unit

The most common mistake in multi-fixture tankless setups is installing a good diverter valve and then discovering the tankless unit can't sustain temperature when both fixtures run. Before buying a diverter, calculate the simultaneous demand and verify your unit's output curve.

Electric tankless units typically output 2.5-4.5 GPM at a 35-50 degree F temperature rise. Running two shower heads simultaneously on an electric tankless is almost always under-served - you'll get flow, but one or both fixtures will run cold. Gas tankless units (Rinnai, Navien, Rheem, Noritz) rated 7-11 GPM handle dual-fixture setups without compromise.

Installation: What Each Type Actually Requires

External Arm Diverter (DIY, 15 minutes)

1. Shut off the shower at the handle. No need to shut off the water supply to the house.
2. Unscrew the existing shower head from the shower arm.
3. Wrap Teflon tape (2-3 wraps, clockwise) on the shower arm male threads.
4. Thread the diverter inlet onto the shower arm. Hand-tighten plus 1/4 turn with pliers - do not overtighten brass.
5. Thread the shower head onto one outlet port of the diverter. Attach the handheld hose to the second outlet port.
6. Turn on, check for leaks at both connections, adjust knob to verify 3-way operation.

In-Wall Rough-In Valve (Plumber territory unless experienced)

1. Shut off the house water supply.
2. Open the wall behind the shower at the planned valve location (typically 48-54 inches above the floor).
3. Connect hot and cold supply lines to the valve body inlets using the appropriate connection type (sweat copper, PEX crimp, or NPT).
4. Mount the valve body to the stud using the included bracket. The valve face must be flush with or slightly behind the finished wall surface.
5. Pressure-test with the included cap before closing the wall.
6. Tile, grout, and install the trim kit after the wall surface is complete.

In-wall valve installation involves shutting off the house water, cutting into the wall, soldering or pressing connections, and repairing the tile surface. Unless you have prior plumbing experience, hire a licensed plumber for the rough-in phase.

What To Avoid: Common Diverter Mistakes in Tankless Setups

• Zinc alloy or ABS diverter valves. Plastic-interior valves fail at the O-rings within 12-18 months at typical tankless output temperatures (120-140 degrees F). Every diverter in this guide uses brass bodies. Do not buy a diverter where the listing specifies "zinc alloy body" or lists weight under 3 oz - those are indicators of plastic interiors.
• Connecting the second outlet without verifying GPM capacity. The diverter works perfectly. The tankless unit can't keep up. Both fixtures run cold. Calculate simultaneous demand before installing.
• Using a 2-way tub/shower diverter for a dual-shower-head setup. A 2-way diverter only routes to one outlet at a time. If your goal is to run both fixtures simultaneously, you need a 3-way diverter that supports the "both" position.
• Skipping Teflon tape on NPT threads. NPT threads are tapered and require thread sealant to seal at the root. A missed wrap on a hot-water connection under a tankless system will weep and eventually fail. Two-to-three wraps clockwise on every NPT male thread before assembly.

The 2026 Verdict

For most tankless homeowners adding a second head to an existing shower, the HammerHead Showers 3-way arm diverter is the correct answer: solid brass, no wall work, and it handles the flow demands of a tankless system without restriction. The Sneatup brass diverter is the budget pick for metric-thread fixtures.

For any new construction or bathroom remodel where the wall is already open, install the Delta MultiChoice R10000-UNBX in the rough-in stage and leave your trim options open. If you want thermostatic anti-scald protection and three independent outlets, the HOMEDEC 3-way thermostatic valve at $210 is the best-value concealed thermostatic option for tankless systems. And if exact temperature readout matters, the Enga digital thermostatic is the upgrade path.

For more on multi-fixture tankless planning, see our no hot water troubleshooting guide, our condensing vs non-condensing efficiency breakdown, and our full tankless water heater buying guide.
