Tankless Water Heater Winter Freeze Protection: How to Prevent Damage in Cold Climates

Affiliate Disclosure: TanklessGeek participates in the Amazon Services LLC Associates Program. We earn commissions from qualifying purchases through our Amazon links at no extra cost to you. We recommend products based on specifications, performance, and value, not commission rates.

Why Tankless Units Are Vulnerable to Freezing

Tank water heaters hold 40 to 80 gallons of water that maintains thermal mass - stored heat that resists freezing for hours even in a cold garage or basement. Tankless heaters hold almost no water. The heat exchanger, valves, flow sensors, and inlet manifold contain only the small amount of water sitting in the unit between uses. When ambient temperature drops below 32 degrees F, that water can freeze and expand within an hour in an unprotected outdoor or garage installation.

The expansion force of freezing water - about 2,000 PSI - easily cracks cast iron, copper, and even stainless heat exchanger tubing. Manufacturers know this. Rinnai, Navien, Rheem, and Noritz outdoor units all include electric freeze protection circuits that warm the internal components, but this protection only works when the unit is connected to power. It does nothing during an outage, and it does nothing to protect the supply and hot water pipes leading to and from the unit.

What Freezes First

The most vulnerable points in any tankless installation, in order of freeze risk:

1. Exposed supply and outlet pipes - any section of uninsulated copper, PEX, or CPVC running in an unheated space or outdoors.
2. The cold water inlet manifold - typically at the bottom of the unit where cold water enters. First point of contact with freezing temperatures in outdoor installs.
3. The internal heat exchanger - most expensive component to replace ($300-$800 parts + labor).
4. The gas valve and flow sensor - internal water passages through these components can crack even when the heat exchanger survives.
5. The hot water outlet manifold - less common than inlet failure but occurs in hard freezes.

Method 1: Self-Regulating Heat Cable

Self-regulating heat cable is the most reliable active freeze protection for water pipes. The cable contains a conductive polymer core that automatically increases electrical resistance as temperature rises, reducing heat output, and decreases resistance as temperature drops, increasing heat output. This self-regulation prevents overheating, allows safe overlap on fittings and valves, and reduces energy consumption compared to constant-wattage tape.

How to Install Heat Cable on Tankless Supply Lines

1. Measure the total length of exposed pipe from where the pipe exits the heated space to the unit inlet. Include vertical runs - do not just measure horizontal distance.
2. Select a cable rated for your pipe material. All three products in the Quick Picks table above are rated for copper, PVC, CPVC, and PEX.
3. Starting at the unit inlet, spiral the cable around the pipe at roughly one wrap per foot of pipe, or run it straight along the pipe and secure with electrical tape or aluminum foil tape every 12 inches.
4. Overlap the cable at valves, elbows, and tees - self-regulating cable is specifically designed to be safe when overlapped at fittings, unlike constant-wattage tape.
5. Terminate at the wall or the heated space entry point where the pipe is no longer at freeze risk.
6. Plug into a standard 120V GFCI outlet. Most installations require a GFCI-protected circuit for safety code compliance.
7. Optionally cover the heated pipe with foam pipe insulation to reduce the electrical draw needed to maintain protection temperatures.

Choosing the Right Heat Cable Length

Temperature ratings: All four products above are rated to maintain pipe temperature above freezing at ambient temperatures down to -40 degrees F when the cable is energized. This covers all inhabited regions of the continental United States and most of Canada.

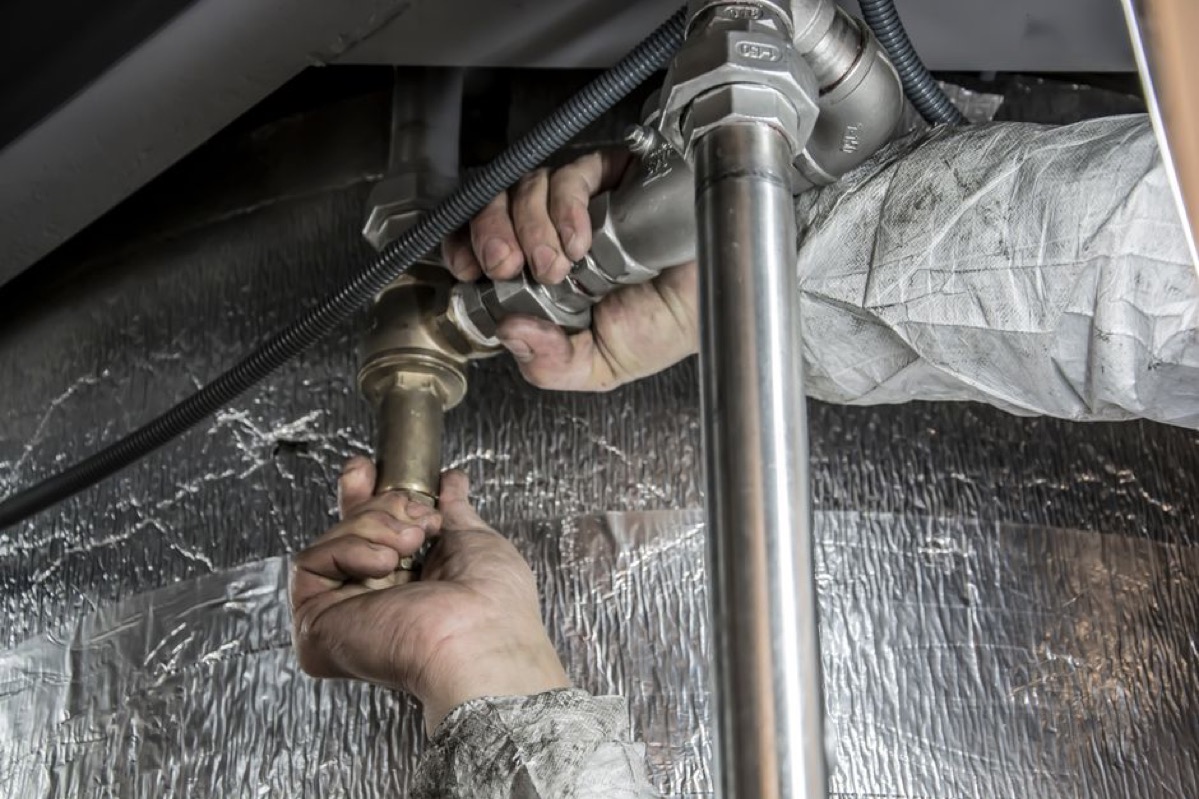

Method 2: Pipe Insulation

Pipe insulation alone does not prevent freezing - it only slows heat loss. At 20 degrees F, uninsulated 3/4-inch copper pipe loses heat fast enough to freeze in 2 to 6 hours. The same pipe with standard foam insulation (R-3 to R-4) can extend that window to 8 to 24 hours. At 0 degrees F, even well-insulated pipe will eventually freeze if there is no heat source. Use insulation as a complement to heat cable, not a replacement for it.

Where Insulation Adds Value

• Combined with heat cable: Wrapping heat cable in foam insulation reduces the wattage the cable must produce to maintain protection temperature, cutting energy consumption by 30-60%.
• Short cold snaps: In climates where temperatures drop below freezing only a few nights per year, insulation alone on short pipe runs (under 5 feet) in a semi-enclosed space may provide adequate protection.
• Transition points: Where pipes exit a heated wall into a garage or crawlspace, foam sleeves on the first 2 to 3 feet of exposed pipe significantly reduce the rate at which the pipe cools.

Method 3: Insulated Outdoor Cover for the Unit Body

Outdoor tankless units have built-in freeze protection circuits, but those circuits protect internal components - not the sheet metal enclosure or the short pipe stubs protruding from the bottom of the unit. An insulated cover reduces how hard the built-in freeze protection must work, extends the effective protection temperature range, and protects unheated pipe stubs.

The moonoom insulated tankless cover (6-layer Oxford cloth, waterproof and windproof, zippered side access) fits units up to 28.3 x 15.7 x 13.0 inches and costs about $20. It is not a substitute for heat cable on supply lines, but it meaningfully reduces heat loss from the unit body in sustained cold.

Cover Limitations

• Covers do not provide any protection during a power outage - the built-in freeze protection is still disabled without power.
• Covers must be removed before operating the unit. Do not run a tankless heater with the cover installed - combustion air intake and exhaust venting must be unobstructed.
• Covers are most useful in moderate cold climates (20 to 32 degrees F) as supplemental protection. In sustained sub-zero conditions, they are not sufficient as a standalone solution.

Method 4: Drain Valve Winterization

For vacation homes, rental properties, or any installation that will be unoccupied during winter, draining the unit and supply lines is the only freeze protection method that works without electricity. A completely dry tankless heater cannot freeze - there is no water to expand.

Full Winterization Procedure

1. Turn off the gas supply valve (gas units) or circuit breaker (electric units).
2. Shut off the cold water inlet isolation valve below the unit.
3. Open a hot water faucet inside the home to relieve system pressure.
4. Locate the drain plug on the cold inlet service port (usually a 3/4-inch or 1/2-inch plug on the inlet manifold). On most Rinnai, Rheem, and Navien units, this is a brass cap or service fitting on the bottom of the unit. Consult the owner's manual for your specific model.
5. Place a bucket under the unit. Remove the drain plug slowly - water will drain from the inlet manifold and heat exchanger.
6. Remove the drain plug on the hot outlet service port as well if your unit has one (Navien NPE-A2 series and Rinnai RU/RUC series both have inlet and outlet service ports).
7. Leave both drain plugs out and both isolation valves closed until you return.
8. Drain the supply and return lines themselves using the lowest point drain valves in your plumbing system, or use a shop vacuum to blow lines clear from the most accessible point.

On return: Reinstall both drain plugs, open the cold inlet valve, let the system fill (open a hot tap and let water run until air bubbles stop), then restore gas or power.

Method 5: Keep Minimum Heat in the Space

For indoor tankless installations in an unheated garage, basement, or utility room: maintaining a minimum ambient temperature of 35 to 40 degrees F eliminates freeze risk entirely without any additional equipment. A plug-in thermostatically controlled space heater set to 40 degrees F typically draws 300 to 600 watts when running. Over a three-month winter, the energy cost is roughly $30 to $60 - comparable to installing heat tape but requiring no installation labor and protecting all pipes in the space simultaneously.

This approach only works for enclosed spaces. It is not practical for outdoor-mounted units or open crawlspaces.

What to Do During a Power Outage

Built-in freeze protection and heat cable both require power. During an extended outage in freezing weather, take these steps immediately:

1. Shut off the gas or power to the unit.
2. Shut off the cold water inlet valve.
3. Open a hot water faucet inside the home to relieve pressure in the hot water lines.
4. If you have drain valves on the unit service ports, drain them now. Do not wait to see if the outage resolves quickly.
5. Open cabinet doors, crawlspace vents, or any access that allows interior heat to reach pipes. During a short outage in a mild freeze, interior heat alone may protect accessible pipes.
6. Trickle a cold water tap. Moving water is harder to freeze than standing water. This is a last resort and wastes water, but it buys time in a borderline situation.

When power is restored: do NOT immediately restore gas or power to the tankless unit. First, visually inspect all accessible pipe connections for cracks or bulges. Turn the water back on slowly and watch for leaks at the inlet manifold and connections. If the unit produces error codes or unusual sounds on first startup after a hard freeze, shut off immediately and call a licensed plumber before continuing use.

Freeze Protection Comparison by Climate Zone

The 2026 Verdict

Freeze protection is cheap insurance. A $31 VEVOR self-regulating heat cable on your supply lines, combined with foam insulation sleeve, protects against the most common failure mode - pipe freeze on exposed runs - at virtually any temperature while the power is on. The moonoom insulated unit cover adds $20 of body protection for outdoor units in moderate cold climates. For power outage risk in severe climates, learn the drain procedure for your specific model now - before you need it at 2 AM in a blizzard.

For related guides, see our cold climate tankless buyer's guide, error code troubleshooting reference, and no hot water diagnosis guide.
